Github CI/CD stuff part 1

How to get automated tests running on github for a kotlin multiplatform project

I decided I should get this working and it would make a nice little blog I figured. If you want the recipe, just skip to the last section!

Story Mode:

So I asked my handy chatgpt to whip me up a github automation file and tell me where to put it. Apparently it goes in .github/workflows/anyoldname.yml And it didn’t work, so I asked for a hello-world test and got:

name: Test GitHub Runners

on:
  push:
    branches:
      - main  # Set this to your default branch if it's not 'main' jobs:
jobs:
  hello_world_job:
    name: Hello World
    runs-on: ubuntu-latest  # Specifies the runner environment

    steps:
    - name: Checkout code
      uses: actions/checkout@v2

    - name: Run a one-line script
      run: echo "Hello, GitHub Actions!"

as an aside, have you noticed that LLM AIs comment the strangest things? I really don’t need the line runs-on: ubuntu-latest to be commented with # specifies the runner environment. LLMs give us the best and worst of the internets programming all in one. I also don’t see much difference between github copilot, jetbrains ai assist, and chat gpt. I like AI assist the best for intellij just because of usability issues. Github Copilot is a close second, and ChatGPT you have to copy and past everything into it - pain.

Anyway, I make a couple of changes to this:

name: Test GitHub Runners

on: [push, pull_request]
jobs:
  hello_world_job:
    name: Hello World
    runs-on: ubuntu-latest

    steps:
      - name: Checkout code
        uses: actions/checkout@v2

      - name: Run a one-line script
        run: echo "Hello, GitHub Actions!"

I want to run on every push, and on pull_requests for now. Actually, pull requests probably want their own workflow because I’d like to do a test merge, and then run the tests. So lets just do push for now, but any branch.

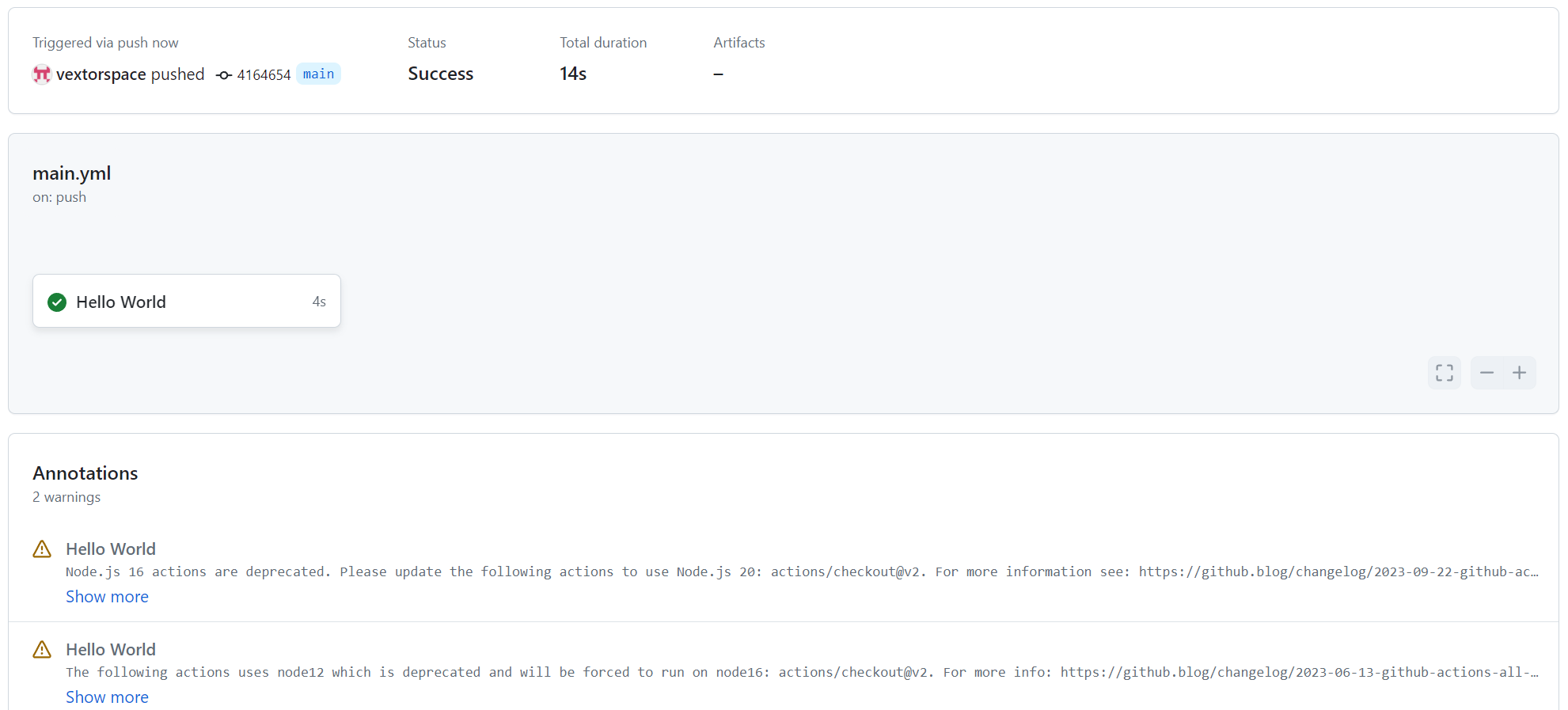

excellent, it ran! but it is complaining about a couple of things I’m using, should be v4 instead of v2 apparently. Change that and repush: and no warnings. Good!

Next step, lets see if we can run the desktop tests. First we need to setup a jdk.

      - name: Set up JDK
        uses: actions/setup-java@v4
        with:
          distribution: 'adopt'
          java-version: '21'

That worked, though again ai gave me the wrong versions of the actions. Next: build. Oddly, the ai despite looking at my files goes off on a tangent and tries to use maven to build instead of gradle. Easy enough to fix.

      - name: Build Project
        run: ./gradlew build

Ok, now we need to run some tests. I’m going to start with the desktopTests. They include the commonTests so it is a nice clean spot to run. How do you run them from the command line? I believe you can just run ./gradlew desktopTest - it compiles some stuff and runs some things. No output, but you can see that it makes some files in the build reports and test-results directories so lets go with that.

      - name: Run Tests
        run: ./gradlew desktopTest

It worked, and so now we need a report - because the success or failure of the tests seem to disappear in the aether - or maybe it would fail if the tests fail. Interesting idea, I should test that.

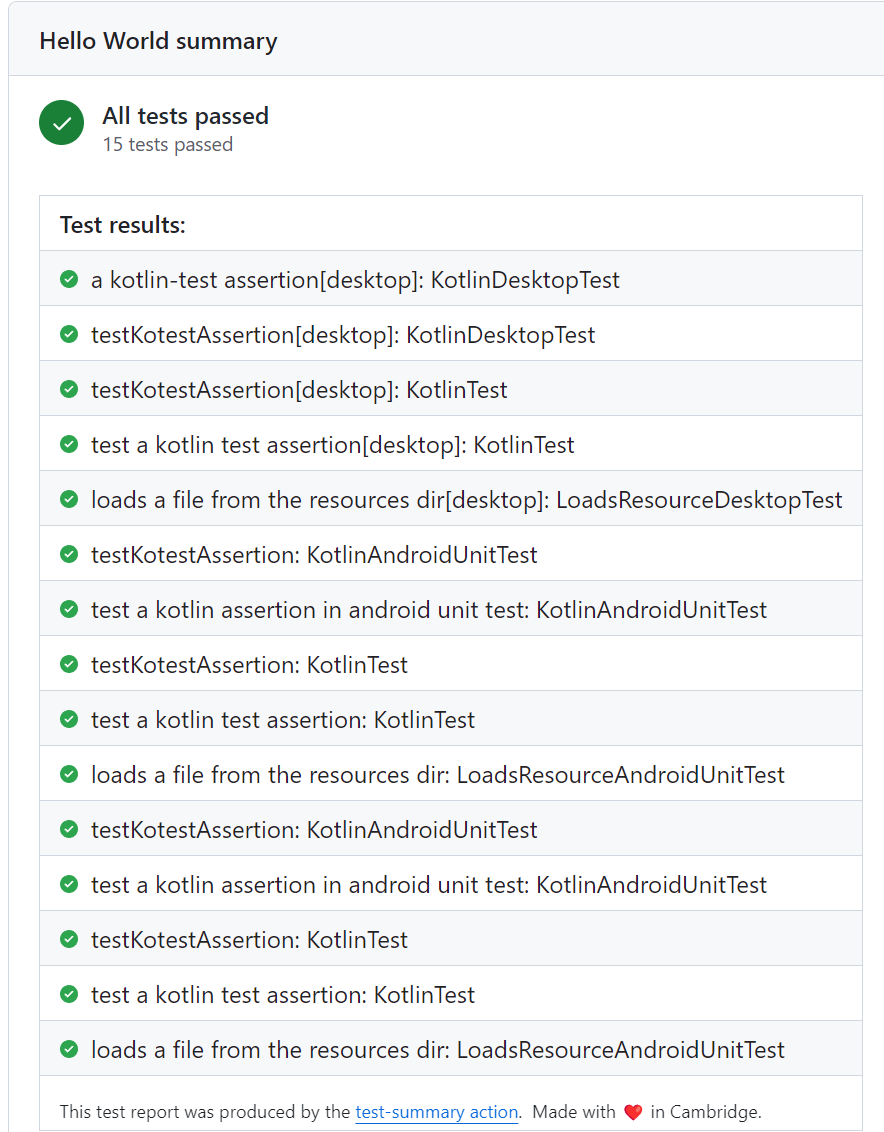

Anyway, lets add a test summary section.

      - name: Create Test Summary
        uses: test-summary/action@v2
        with:
          paths: '**/test-results/**/*.xml'
          show: "pass, fail, skip

Not bad! Now for the really interesting question, can we get the android unit tests to run? On my system I can run ,/gradlew composeApp:testDebugUnitTest and it will run them. composeApp:androidUnitTest does not work, would have thought it would.

      - name: Run Android Unit Tests
        run: ./gradlew composeApp:testDebugUnitTest

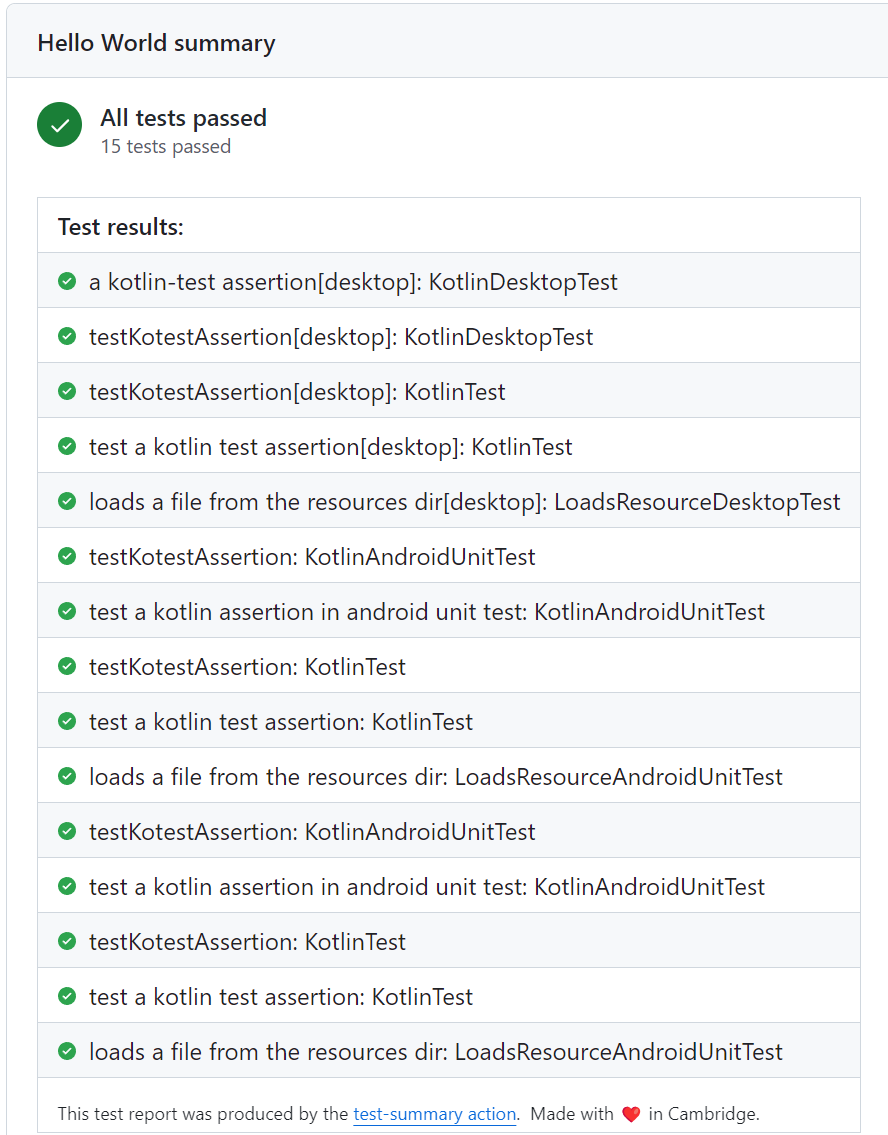

yup! That worked too. Wait a minute:

The same number of tests. Did they not run? No, they ran. `test a kotlin assertion in android unit test: KotlinAndroidUnitTest` is an android unit test, as are a couple of others. It seems that they are running when I am running the desktop test. Not sure why… Anyway, I will leave this in to be clear. The next question is can I run the androidInstrumentedTest target. This is particularly interesting because you need to setup the android sdk and accept licenses and such on your personal computer to make this all work. However, there is an android emulator runner action in github. It has a lot of setup, but seems to have all the instructions and some examples. So I add:

      - name: Enable KVM group perms
        run: |
          echo 'KERNEL=="kvm", GROUP="kvm", MODE="0666", OPTIONS+="static_node=kvm"' | sudo tee /etc/udev/rules.d/99-kvm4all.rules
          sudo udevadm control --reload-rules
          sudo udevadm trigger --name-match=kvm

      - name: Run Android Emulator Tests
        uses: reactivecircus/android-emulator-runner@v2
        with:
          api-level: 28
          script: ./gradlew connectedAndroidTest

but I still have 15 passed tests, no failed. Looking in the output for the task, I see:

[EmulatorConsole]: Failed to start Emulator console for 5554.

Turns out minimum api-level for this runner is 29- so I up that and I get:

/usr/bin/sh -c \sdkmanager --install 'system-images;android-30;default;x86' --channel=0 > /dev/null
  Warning: Errors during XML parse:
  Warning: Additionally, the fallback loader failed to parse the XML.
  Warning: Failed to find package 'system-images;android-30;default;x86'

So the emulator is not starting. Looks like the default is for an x86, so adding an arch: x86_64 to the command

      - name: Run Android Emulator Tests
        uses: reactivecircus/android-emulator-runner@v2
        with:
          api-level: 30
          script: ./gradlew connectedAndroidTest
          arch: x86_64

it runs, but still only 15 passed tests. Looks like we needed to specify the paths as well:

      - name: Create Test Summary
        uses: test-summary/action@v2
        with:
          paths: '**/*est-results/**/*.xml'
          show: "pass, fail, skip"

note I took the lower-case “t” out of the path. That is because android instrumented tests end up in some directory called androidTest-results so this path pattern meets both and gathers all the results up!

So in summary:

you need a github workflow file, it goes in .github/workflows/someName.yml and here is a file that will run all the tests for android and desktop and common on any branch push or pull-request. I named it main.yml:

name: Test GitHub Runners

on: push

jobs:
  build-and-test:
    name: Kotlin Multiplatform Project Build
    runs-on: ubuntu-latest

    steps:
      - name: Checkout code
        uses: actions/checkout@v4

      - name: Set up JDK
        uses: actions/setup-java@v4
        with:
          distribution: 'adopt'
          java-version: '21'

      - name: Build Project
        run: ./gradlew build

      - name: Run Desktop Tests
        run: ./gradlew composeApp:desktopTest

      - name: Run Android Unit Tests
        run: ./gradlew composeApp:testDebugUnitTest

      - name: Enable KVM group perms
        run: |
          echo 'KERNEL=="kvm", GROUP="kvm", MODE="0666", OPTIONS+="static_node=kvm"' | sudo tee /etc/udev/rules.d/99-kvm4all.rules
          sudo udevadm control --reload-rules
          sudo udevadm trigger --name-match=kvm

      - name: Run Android Emulator Tests
        uses: reactivecircus/android-emulator-runner@v2
        with:
          api-level: 30
          script: ./gradlew connectedAndroidTest
          arch: x86_64

      - name: Create Test Summary
        uses: test-summary/action@v2
        with:
          paths: '**/*est-results/**/*.xml'
          show: "pass, fail, skip"

There we go, runs everything. I think there are some caching things one can do to speed it up. I’ll maybe look at that later.

Note I’ve committed these changes to my github kotlin multiplatform testing project

I hope this helps someone out!
